उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: CPET
प्रमाणन: CE,ROHS
मॉडल संख्या: सीपी-सीपीडीसी3001
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1
मूल्य: ¥ 58000 yuan
पैकेजिंग विवरण: लकड़ी का बक्सा पैकेज
प्रसव के समय: 30 कार्य दिवस
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 30 सेट/माह
लोड मॉडल: |
इलेक्ट्रॉनिक लोड प्रकार |
आवेदन: |
विद्युत आपूर्ति परीक्षण |
बाह्य आयाम: |
2050*1200*1900मिमी |
रेटेड कार्यशील वोल्टेज: |
एसी：380VAC |
ट्रॉली का आकार: |
L2050*W1250*H2050mm |
ट्रॉली की ऊंचाई: |
270 （मिमी） |
लोड मॉडल: |
इलेक्ट्रॉनिक लोड प्रकार |
आवेदन: |
विद्युत आपूर्ति परीक्षण |
बाह्य आयाम: |
2050*1200*1900मिमी |
रेटेड कार्यशील वोल्टेज: |
एसी：380VAC |
ट्रॉली का आकार: |
L2050*W1250*H2050mm |
ट्रॉली की ऊंचाई: |
270 （मिमी） |

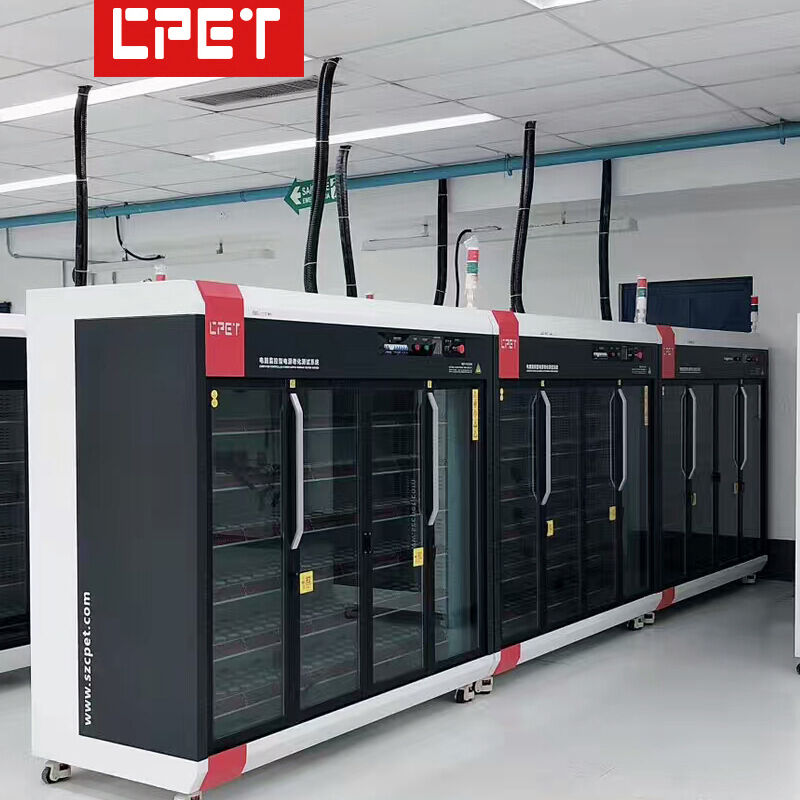

MPPT Controller Burn-In Cabinet S485/RS232 Communication DC-DC Aging Test System
| Burn-in cabinet structure and Burn-in quantity planning |
Trolley size (mm) | L2050*W1250*H2050mm (size of a single Burn-in cabinet) |
| Number of trolley layers | 4 layers, product area depth 400mm, (6 Burn-in positions per layer) | |
| Trolley height | 280mm | |
| Trolley structure material | cold rolled sheet | |
| Load area cooling method | Top turbine exhaust fan top row type (easy to control the ambient temperature) | |
| Layer insulation and anti-static method | Epoxy insulation board with heat dissipation holes on the surface | |
| Overall burn-in room structure | Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine | |
| Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant |
Energy recovery module control method | RS485 communication mode, upper computer uses RS232 communication mode |
| Energy recovery module isolation mode | Electronic load module channel adopts photoelectric isolation (communication and power supply isolation) | |
| Install the skill module model | CP8601, 24PCS in one cabinet | |
| Number of installed DC source modules | Each burn-in cabinet is configured with six 10-120V /200A /20KW DC power modules | |
| Energy recovery module carrying capacity | Load capacity: 2.5-60Vdc/0.5-240A/3.2kW (voltage, current adjustable | |
| rgy recovery module design architecture |
No relay, long life design scheme (independent intellectual property rights) | |
| Number of burn-in products in the entire cabinet | One cabinet burn-in MTTP modules of less than 3.2KW 24PCS | |
| Introduction to the main functions of the system |
Suitable for MPPT controller DC to DC power supply burn-in | |
| Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights and no legal risks | ||
| Use programmable electronic load module to monitor output terminal voltage, current and power parameters | ||
| Dedicated monitoring software for Burn-in enjoys free final upgrade service, powerful expansion function, saving repeated investment in equipment | ||
| Burn-in parameters, time setting, ON/OFF sequence editing (test of the product being tested on and off), support for automatic voltage switching, load conversion and other functions can be programmed (Burn-in parameters can be automatically switched in a fixed time period) |
||
| The function of automatically turning off the power at the end of the Burn-in of the tested power supply is convenient for unattended | ||
| The computer automatically displays the quality of the tested power supply product, and multiple windows in the window are convenient for centralized management, which saves operators and improves production efficiency |
||
| The computer can store the Burn-in data report of the tested power supply, the process parameters of the tested power supply are easy to trace | ||
| RS232 to RS485 adopts photoelectric isolation converter to improve communication reliability and prevent lightning damage to equipment | ||
| Each computer can monitor 18 devices at the same time, (each serial port can connect to 63 slaves, and each computer supports up to 18 serial ports) | ||
| The power Burn-in monitoring software has a built-in help file, which is convenient for solving operation questions immediately | ||
